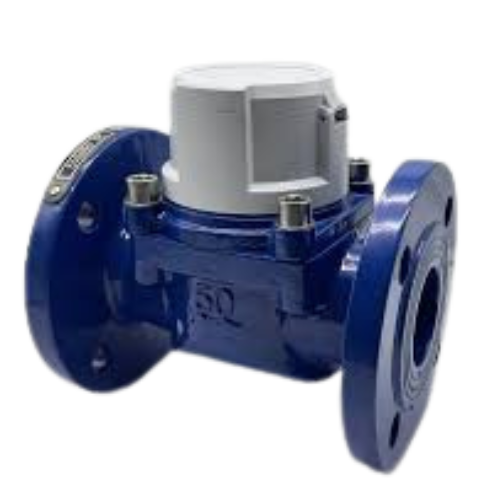

Woltman removable dry dial meter Model NWGWC

SALIENT FEATURES OF MODEL NWG WOLTMAN METER

• • Dry dial Magnetic drive.
  • Technical data confirming to ISO 4064 Standard.
  • Interchangeable spare parts.
  • Vaccum sealed Copper Can Register giving IP-68 protection.
  • AMR Ready.
  • Accuracy R-100.
  • Available for cold / hot water.
  • Body material can be Cast Iron / Ductile Iron / SS 304 / SS 316.
  • Flange Standard can be customized.
  • Working Pressure PN 10/16/25.
  • Installation U10D5

 Working Conditions :

• • Water temperature: ≤50ºC for cold water meter
  • Water temperature: ≤90ºC for hot water meter
  • Water pressure: ≤1MPa or 1.6MPa optional

 Permissible Error:

• Qmin(Q1) ≤   to  < Qt (Q2) ±5%.
• Qt (Q2) < to ≤ Qmax(Q4) ±2%  (for hot water meter ±3%).

 Main technical parameters and dimensions:

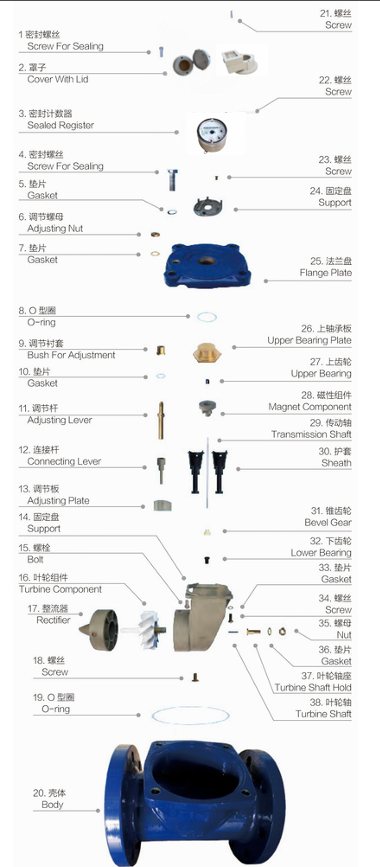

 Blasted Assembly- Exploited View:
