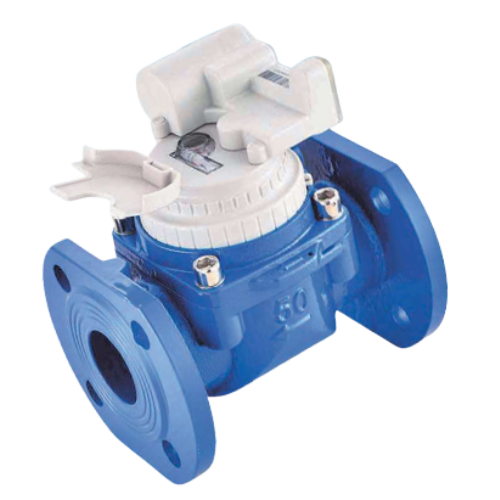

Woltman R200 model NGWWX

SALIENT FEATURES OF MODEL NWGWX-40~300 WOLTMAN TYPE METER

• • Dry dial Magnetic drive.
  • Technical data confirming to ISO 4064 Standard.
  • Interchangeable spare parts
  • Vaccum sealed register giving IP-67/68 protection.
  • Pulse output option of 10L / 100L / 1000L
  • Copper Can Register for perfect Hermetic Sealing.
  • Accuracy R-200
  • Available for cold / hot water
  • Body material Ductile Iron
  • Flange Standard can be customized
  • Working Pressure 16
  • Installation UODO
  • Installation in any orientation (horizontal, vertical, inclined)

 Working Conditions :

• • Water temperature: ≤50ºC for cold water meter
  • Water temperature: ≤90ºC for hot water meter
  • Water pressure: ≤1MPa or 1.6MPa optional.

 Permissible Error:

• Qmin(Q1) ≤   to  < Qt (Q2) ±5%.
• Qt (Q2) < to ≤ Qmax(Q4) ±2%  (for hot water meter ±3%).

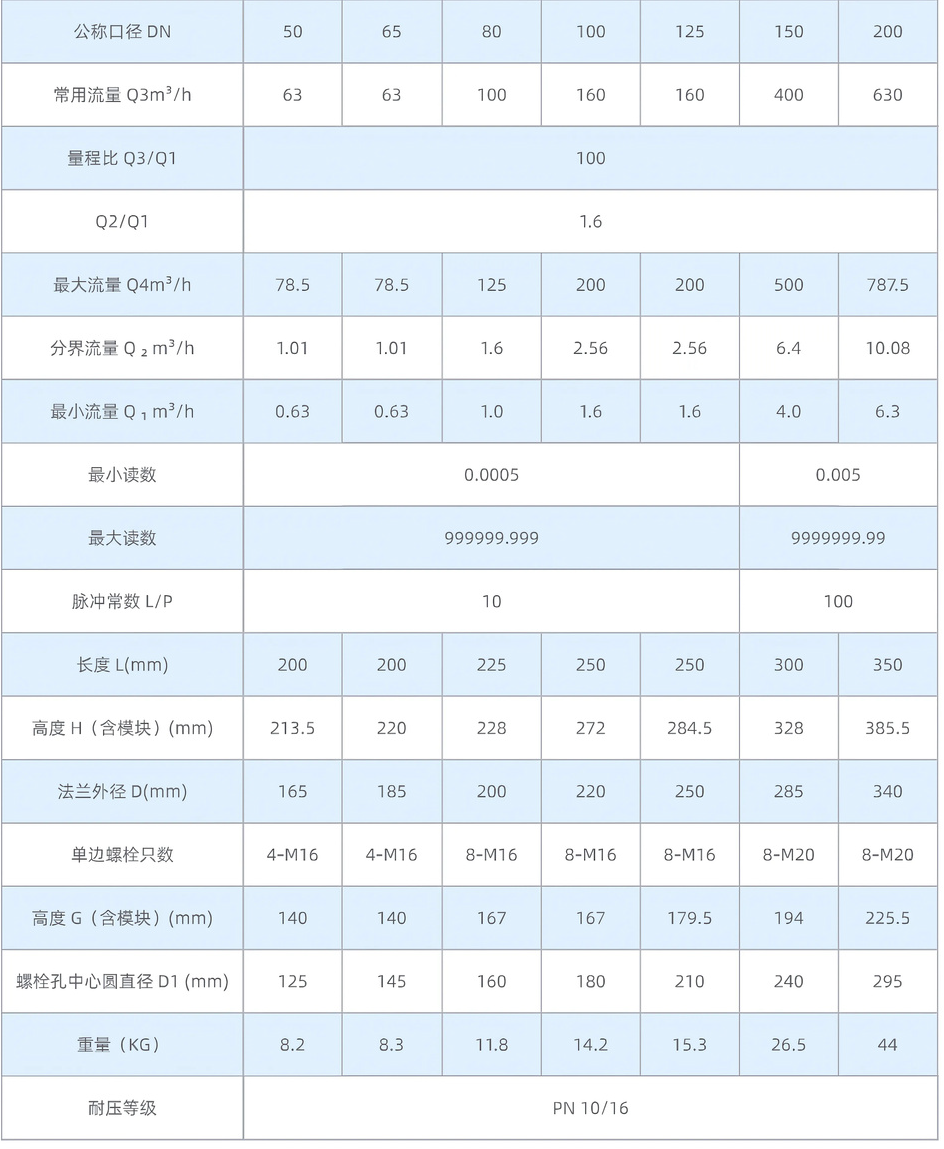

 Main technical parameters and dimensions:

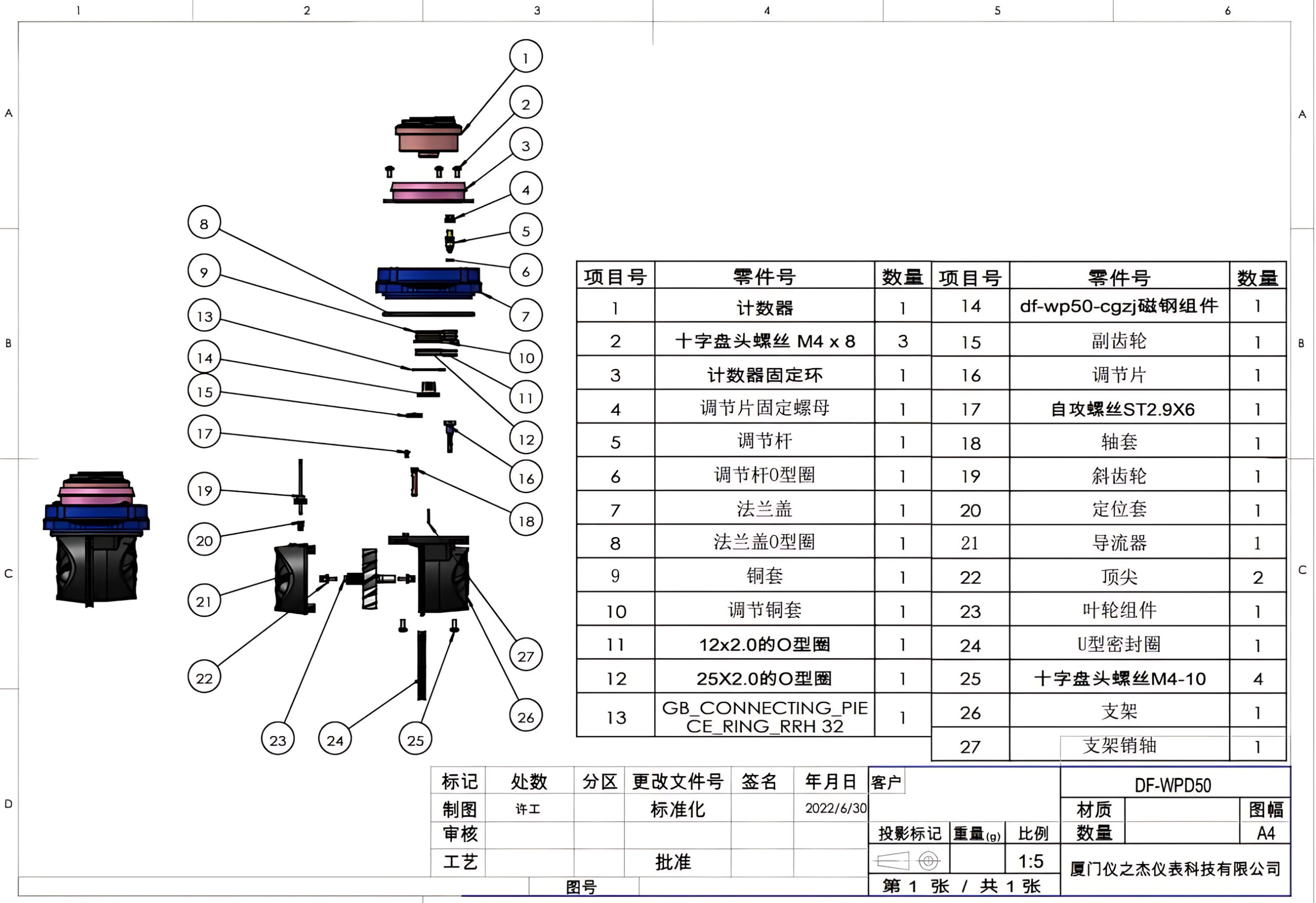

 Blasted Assembly- Exploited View:
