SALIENT FEATURES OF NWGDH

• Dry dial Magnetic drive with Magnetic Shield.
• Technical data confirming to ISO 4064 Standard
• Interchangeable spare parts
• Vaccum sealed Register giving IP-68 protection

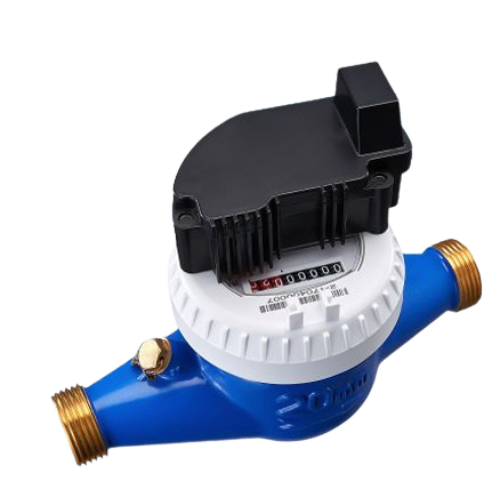

• AMR Compatible – Pre Equipped Inductive / Magnetic Output.
• NB-IoT, LoRaWAN, GSM/GRPS, RF Mode of Communication.
• Body Material can be Brass or Plastic
• Accuracy R80 / R100 / R160
• Available for Cold / Hot Water
• Option of Plastic Can / Copper Can Register

 Working Conditions :

• Water temperature: ≤50ºC for cold water meter.
• Water temperature: ≤90ºC for hot water meter.
• Water pressure: ≤1MPa or 1.6MPa optional.

 PERMISSIBLE ERROR:

• Qmin(Q1) ≤   to  < Qt (Q2) ±5%
• Qt (Q2) < to ≤ Qmax(Q4) ±2%  (for hot water meter ±3%)

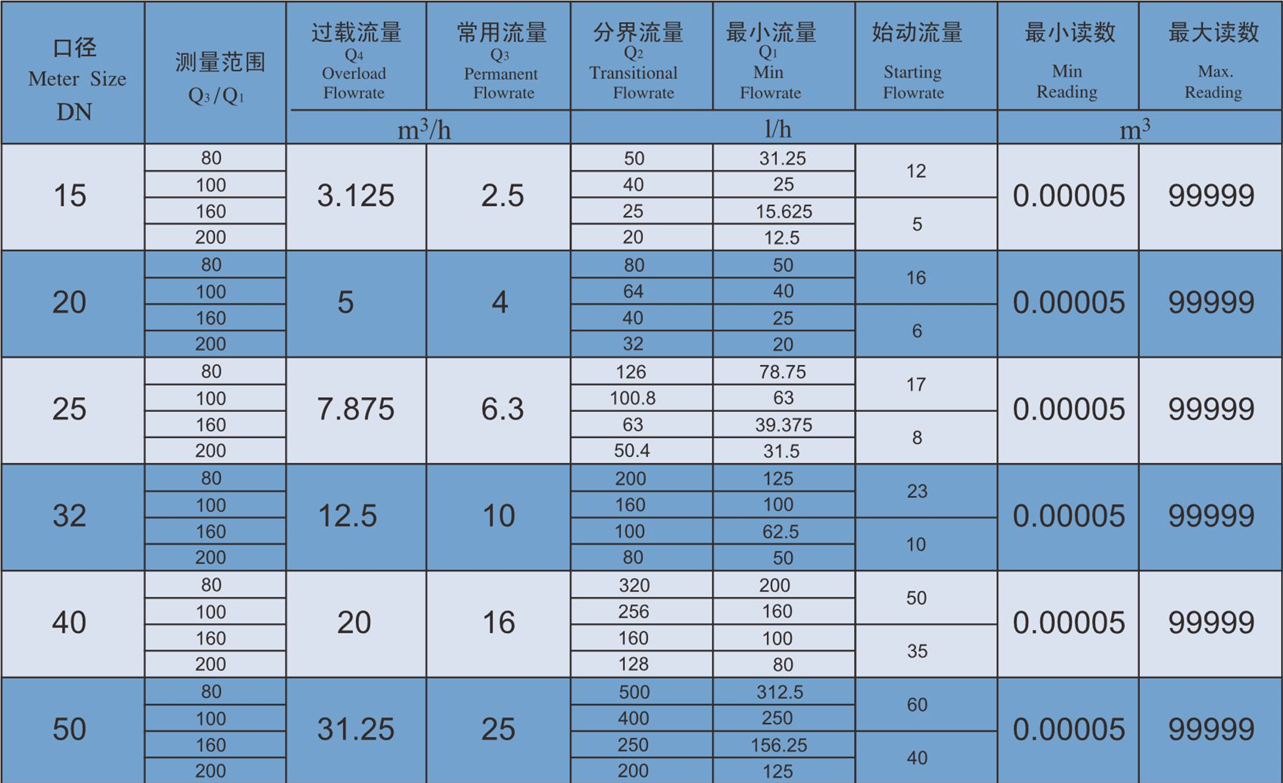

 Main Technical Data:

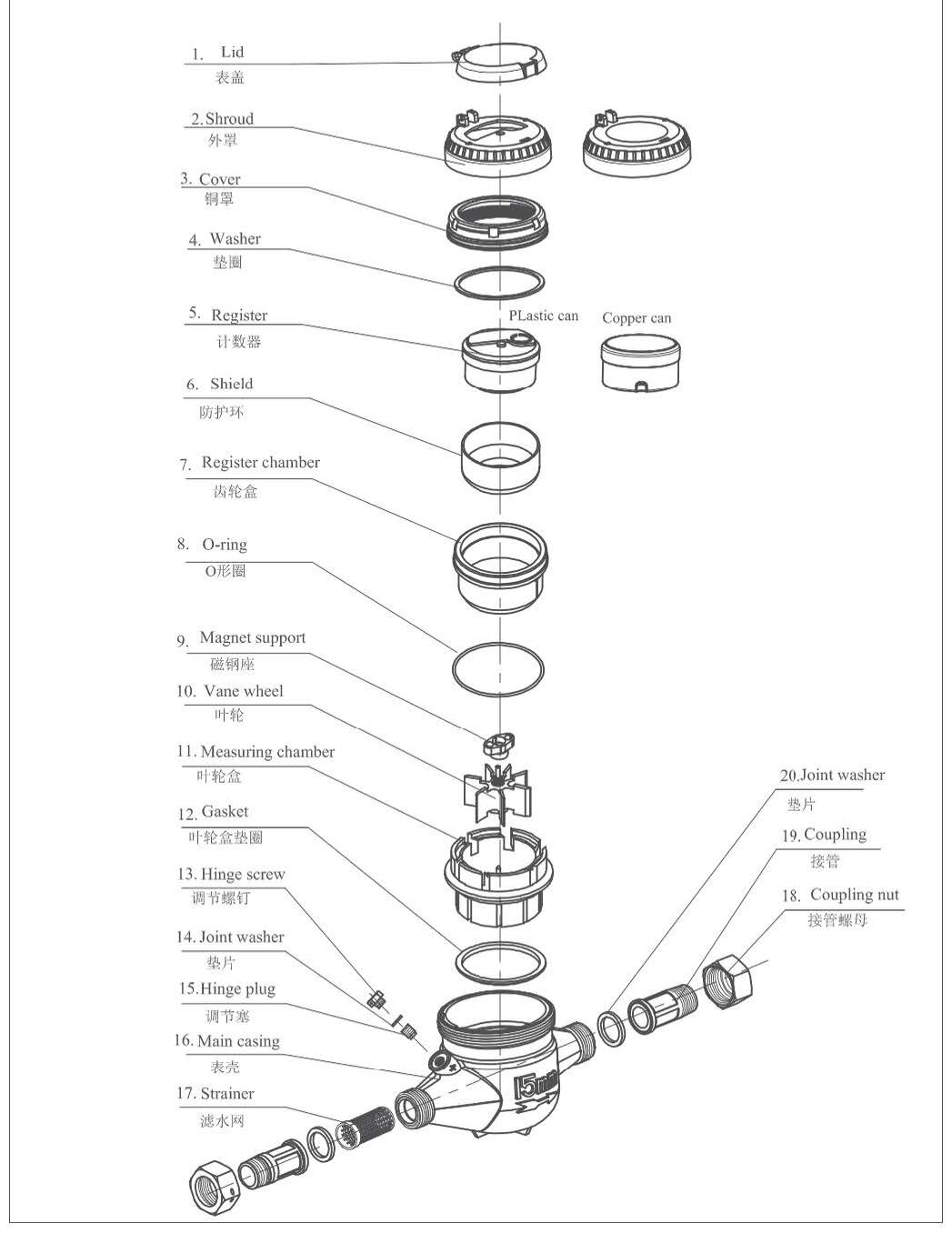

Blasted Assembly:
