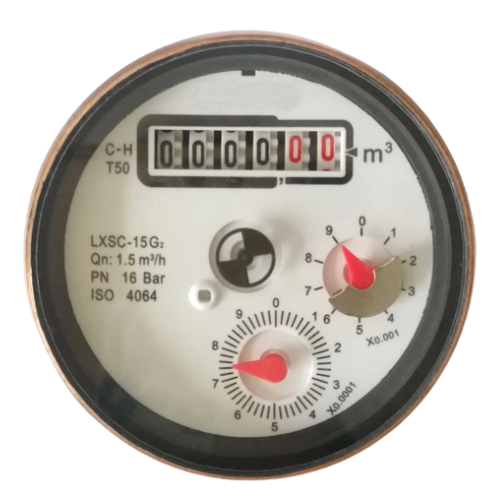

Multi Jet Pulse Output Model NWGMB

]

SALIENT FEATURES OF NWGMB

• Dry dial Magnetic drive.
•  Technical data confirming to ISO 4064 Standard.
• Interchangeable spare parts
• Vaccum sealed Register giving IP-68 protection.
•  Pulse output option – REED Switch (Wired) / Inductive (Wireless).
• Body Material can be Brass or Plastic
• Accuracy R80 / R100 / R160
• Body Material can be Brass or Plastic

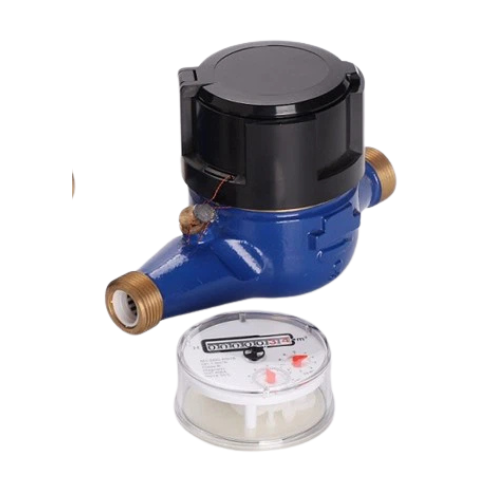

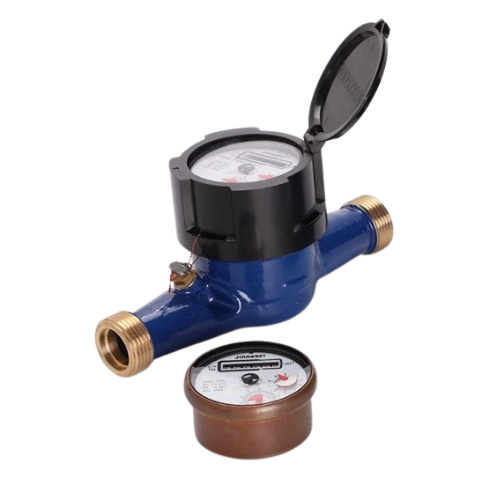

• Option of Plastic Can / Copper Can Register
• Available with MID (CE) Certification

 Working Conditions :

• Water temperature: ≤50ºC for cold water meter.
• Water temperature: ≤90ºC for hot water meter.
• Water pressure: ≤1MPa or 1.6MPa optional.

 PERMISSIBLE ERROR:

• Qmin(Q1) ≤   to  < Qt (Q2) ±5%
• Qt (Q2) < to ≤ Qmax(Q4) ±2%  (for hot water meter ±3%)

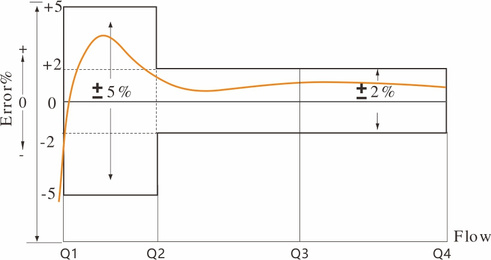

Error Curve:

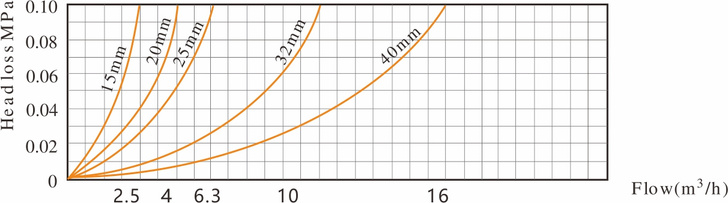

 Head Error Curve:

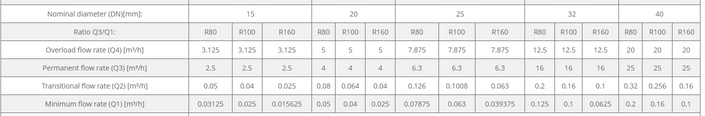

 Main Technical Data:

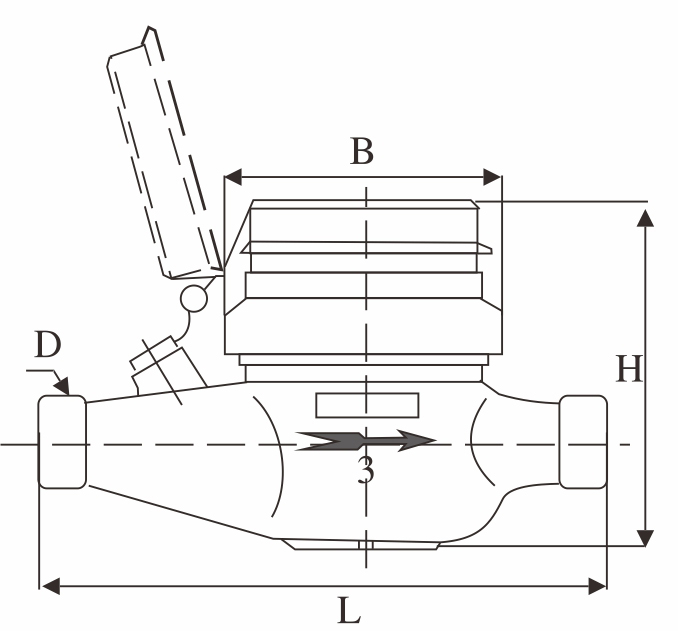

Dimension & Weight:

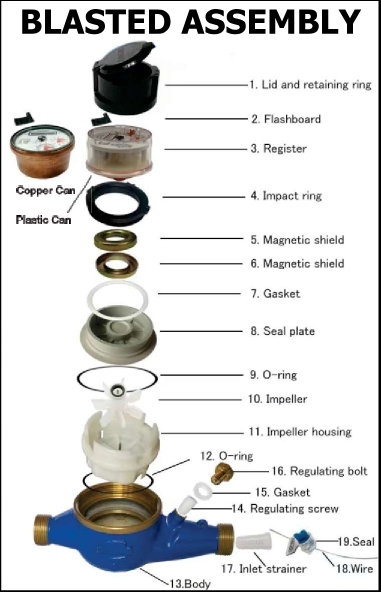

 Blasted Assembly:
